IBC VX Boiler

With the launch of the VX™ high-efficiency modulating condensing boiler, IBC® will be positioned to offer unprecedented value in the residential new and retro fit marketplace. The VX™ offers the same great quality, control features and efficiency you expect from an IBC® stainless steel fire tube boiler but in a more compact design , saving time, space and money.

  • Specifications
    • Built-in 4 zone pump or valve control in addition to the primary control. 5 pumps total. Replacing the need for external pump controls
    • PVC/CPVC/PPs approved – venting up to 240ft (each side) on the VX 110
    • Built-in CSA/UL approved LWCO and manual reset high limit.
    • Turndown ratio of up to 6.5:1 means you have the power to heat your home in the coldest weather, yet reduce short cycling when the weather is mild.
    • Reverse flow detection.
    • 5 Year Parts Warranty & Limited 15 year residential heat exchanger warranty.
    • 95% AFUE with full ASME-rated heat exchanger
    • Express setup with easy remote diagnostics and troubleshooting
  • Where to buy

    Units are stocked locally. Complete in house design and technical support is available 8:00am to 5:00pm with on call tech support after hours. If you are looking for design help or an installer in your area contact us at 800-665-3336 x 206 or email us at info@edenenergy.com

background
Introducing the new IBC VX Boiler

Checkout a short preview of the new IBC VX Boiler. This unit has been engineered from the ground up by Canadians and for Canadians. A truly revolutionary product for the customer who wants the best product on the market. Made in Vancouver!

See it in action   104 Seconds
  • Technical Specs

    Specifications VX 110 VX 150 VX 199
    CSA Input (Natural Gas or Propane) – MBH 16.9 - 110 23 - 150 30.6 - 199
    CSA Output – MBH 16.2 - 101.1 22 - 138.5 29.2 - 183.7
    A.F.U.E 95% 95% 95%
    Min gas pressure (Nat. Gas or Propane) – inch w.c. 4 4 4
    Max Gas Pressure (Nat. Gas or Propane) – inch w.c. 14 14 14
    Power (120Vac/60Hz) – Watts @ full fire with internal pump 54 54 54
    Pressure vessel water content – USG/Liters 1.88 / 7.12 2.79 / 10.56 3.51 / 13.29
    Max boiler flow rate – USgpm 14 19 25
    Min boiler flow rate – USgpm 2 3 4
    Max operating pressure psig 50 50 30
    Min water pressure – psig 8 8 8
    Min water temperature – Space Heating (°F/°C) 34 / 1 34 / 1 34 / 1
    Max water temperature – Space Heating (°F/°C) 190 / 88 190 / 88 190 / 88
    Max equivalent vent length 2″ (each side) 100′ 50′ N/A
    Max equivalent vent length 3″ (each side) 240′ 170′ 100′
    Boiler Head Loss - VX Series
    Flow Rate - GPM 2 4 6 7 8 10 12 13 14 16 18 19 20 22
    Head @ Flow - Ft. VX 110 0.18 0.51 0.99 N/A 1.59 2.49 3.55 N/A 4.75 N/A N/A N/A N/A N/A
    Head @ Flow - Ft. VX 150 N/A 0.42 0.9 N/A 1.52 2.26 3.25 N/A 4.31 5.61 N/A N/A N/A N/A
    Head @ Flow - Ft. VX 199 N/A 0.44 N/A 0.9 N/A 1.73 N/A 2.91 N/A 4.36 N/A 6.23 N/A 8.4

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

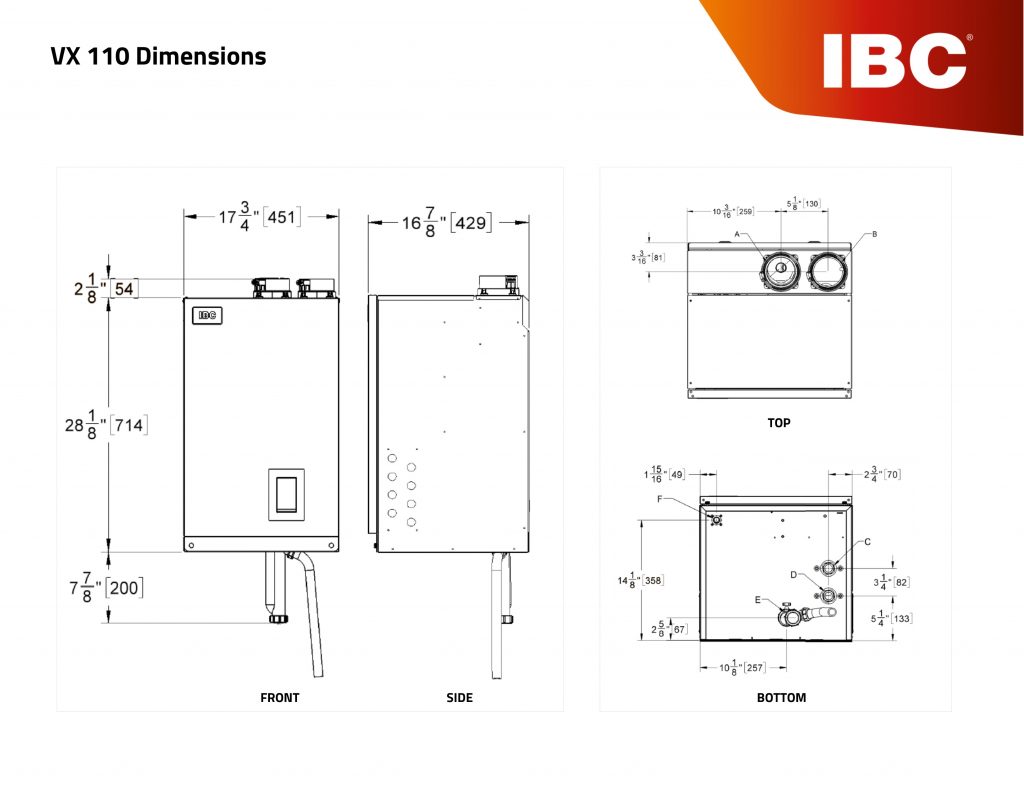

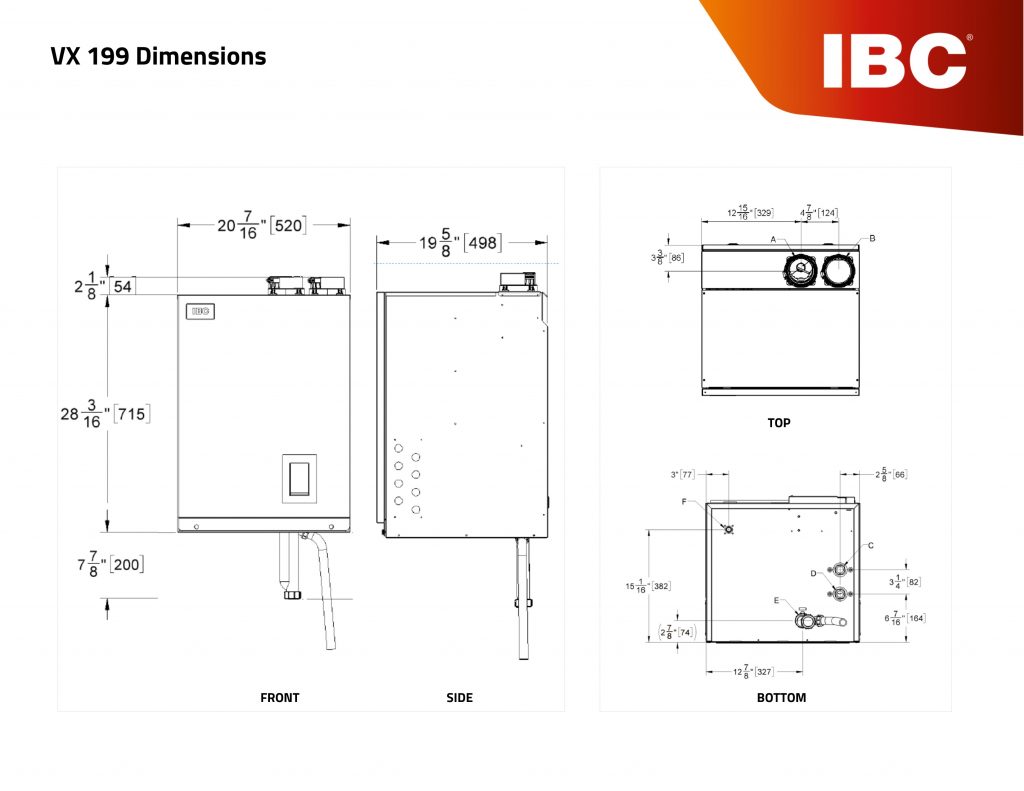

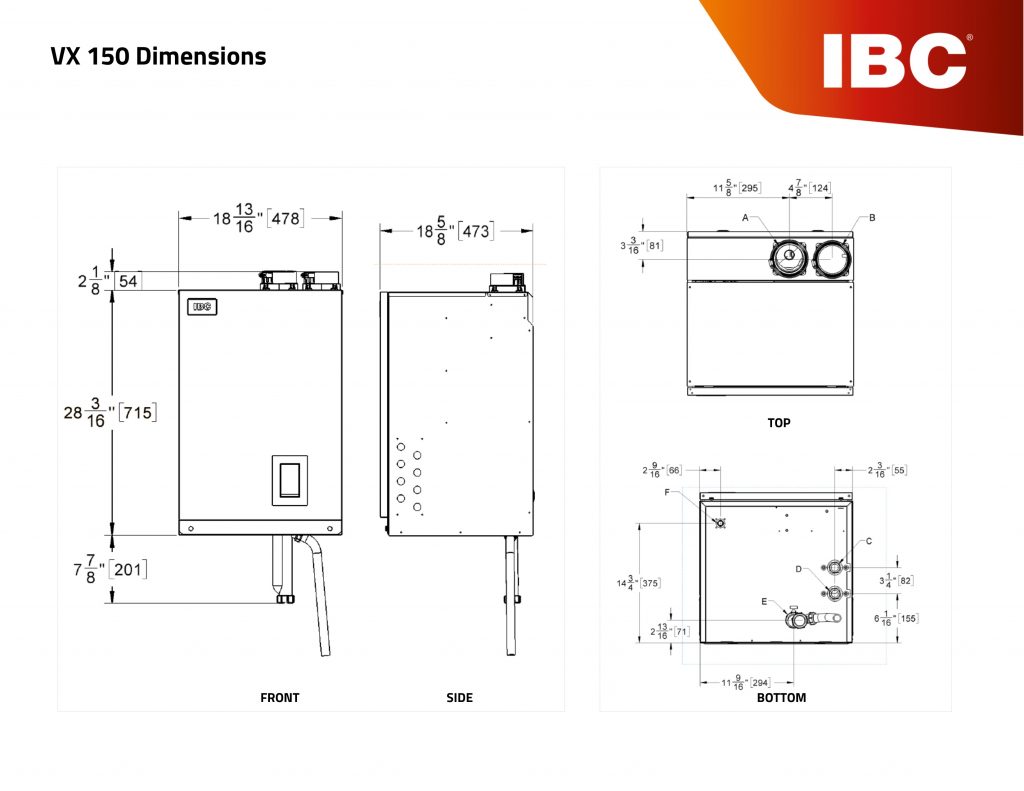

  • Connections & Measurements
  • Documentation
    Download Sales Brochure VX Series
    Engineering Submittal VX Series
    Install & Operation Manual VX Series
    Controller Manual VX Series
