Compact & Ramo Panel Baseboard Radiators

A Better Option Than Fin-Tube

Panel radiators provide both convective and radiant heat enhancing total comfort. Faster heat-up rate with built-in valve for smarter control provides perfect solution for low temperature systems using condensing boilers, heat pumps and solar systems. Optimal use of low temperature radiators outperforms high temperature fin-tube. Higher BTUH output than fin-tube baseboard and other heat emitters, and a decorative style with finished top grille and side covers.

  • Features
    • Built-in thermostatic valve.
    • Twin bottom connections with alternate side connections.
    • Adjustable wall bracket for easy mounting.
    • Two (2) Blind plugs and one (1) air vent.
    • Colour RAL9016 white, cold rolled heavy gauge steel.
background
How to Use Your Thermostatic Radiator Valve

The Compact & Ramo Panel Radiators come equipped with a built-in thermostatic valve. This video demonstrates how to use it so you can get started quickly with your own radiator.

Watch Now   56 Seconds
  • Technical Specs

    RCV21S/CV21S Single Panel 8" High
    Specifications 200-600 200-900 200-1200 200-1600 200-2000 200-2600
    Length - Inches 24" 36" 48" 63" 79" 103"
    Connection Size - Inches ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾"
    Output at 180° AWT 1346 2022 2698 3598 4496 5842
    Output at 160° AWT 1063 1597 2131 2842 3552 4615
    Output at 140° AWT 781 1173 1565 2087 2608 3388
    Output at 120° AWT 485 728 971 1295 1619 2103
    Output at 110° AWT 390 586 782 1043 1619 1694
    Output at 100° AWT 283 425 567 756 944 1227
    CV21S Single Panel 8" High
    Specifications 600-600 600-800 600-1000 600-1200
    Length - Inches 24" 32" 40" 48"
    Connection Size - Inches ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾"
    Output at 180° AWT 2744 3659 4573 5488
    Output at 160° AWT 2113 2817 3521 4226
    Output at 140° AWT 1701 2269 2835 3403
    Output at 120° AWT 988 1317 1646 1976
    Output at 110° AWT 741 988 1235 1482
    Output at 100° AWT 521 695 869 1043

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Radiator Extras

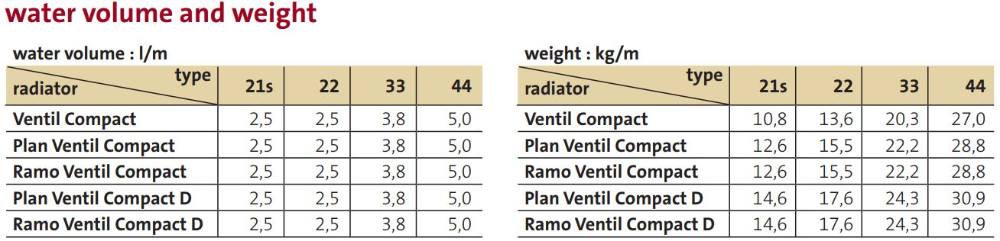

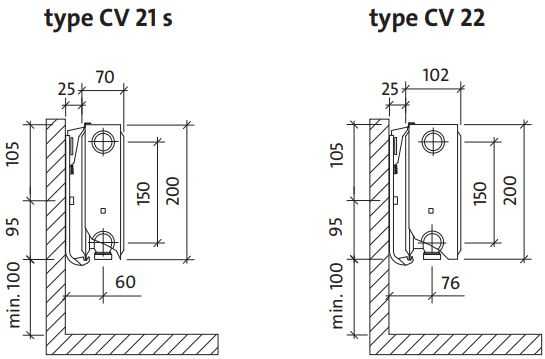

    side-view volume weight and mounting distances

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Documentation
    Technical Catalog Download
