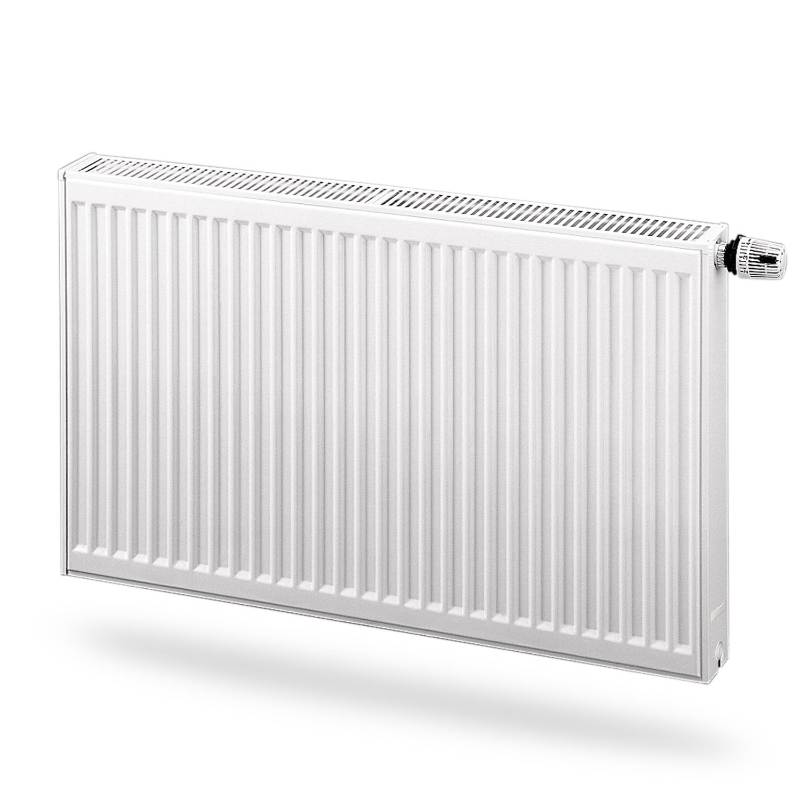

  • compact panel rad
  • ramo compact panel rad

Compact & Ramo Panel Radiators

Vastly Superior to Fin-tube Convection

Panel radiators provide both convective and radiant heat enhancing total comfort. Faster heat-up rate with built-in valve for smarter control provides perfect solution for low temperature systems using condensing boilers, heat pumps and solar systems. Optimal use of low temperature radiators outperforms high temperature fin-tube. Higher BTUH output than fin-tube baseboard and other heat emitters, and a decorative style with finished top grille and side covers.

  • Features
    • Built-in thermostatic valve.
    • Twin bottom connections with alternate side connections.
    • Adjustable wall bracket for easy mounting.
    • Two (2) Blind plugs and one (1) air vent.
    • Colour RAL9016 white, cold rolled heavy gauge steel.
background
How to Use Your Thermostatic Radiator Valve

The Compact & Ramo Panel Radiators come equipped with a built-in thermostatic valve. This video demonstrates how to use it so you can get started quickly with your own radiator.

Watch Now   56 Seconds
  • Technical Specs

    RCV22/CV22 Double Panel 8" High
    Specifications 200-600 200-900 200-1200 200-1600 200-2000 200-2600
    Length - Inches 24" 36" 48" 63" 79" 103"
    Connection Size ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾"
    Output at 180° AWT 1776 2668 2968 3598 5939 7706
    Output at 160° AWT 1403 2108 3135 3759 4692 6088
    Output at 140° AWT 1030 1547 2301 2760 3445 4469
    Output at 120° AWT 639 960 1428 1723 2138 2774
    Output at 110° AWT 515 774 1151 1380 1722 2234
    Output at 100° AWT 373 560 833 999 1247 1618
    RCV22/CV22 Double Panel 16" High
    Specifications 400-600 400-800 400-900 400-1000 400-1200 400-1400 400-1600
    Length - Inches 24" 32" 32" 40" 48" 56" 63"
    Connection Size ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾"
    Output at 180° AWT 3363 4484 4995 5506 6727 7848 8969
    Output at 160° AWT 2590 3453 3885 4317 5180 6043 6906
    Output at 140° AWT 1884 2511 2843 3140 3767 4395 5023
    Output at 120° AWT 1211 1614 1798 1982 2422 2825 3229
    Output at 110° AWT 975 1300 1449 1597 1951 2276 2422
    Output at 100° AWT 706 942 1049 1156 1413 1648 1888
    RCV22/CV22 Double Panel 24" High
    Specifications 600-600 600-800 600-900 600-1000 600-1200 600-1400 600-1600 600-1800
    Length - Inches 24" 32" 32" 40" 48" 56" 63" 71"
    Connection Size ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾" ½" x ¾"
    Output at 180° AWT 4570 6094 6856 7617 9140 10663 12187 13710
    Output at 160° AWT 3519 4692 5279 5865 7038 8211 9384 10557
    Output at 140° AWT 2559 3412 3839 4265 5119 5971 6825 7677
    Output at 120° AWT 1645 2194 2468 2742 3290 3839 4387 4936
    Output at 110° AWT 1325 1767 1988 2209 2651 2879 3534 3702
    Output at 100° AWT 960 1280 1418 1560 1919 2026 2259 2605

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Radiator Extras

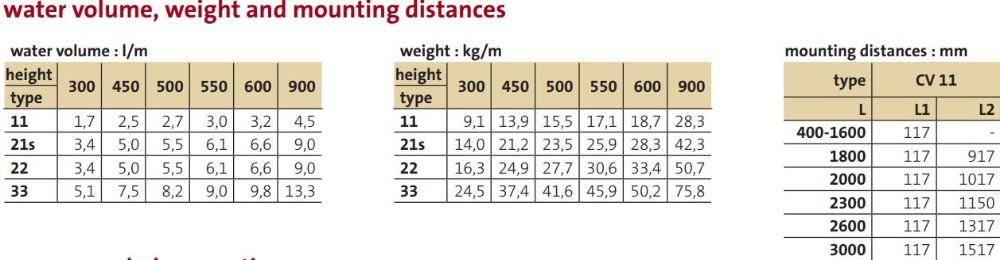

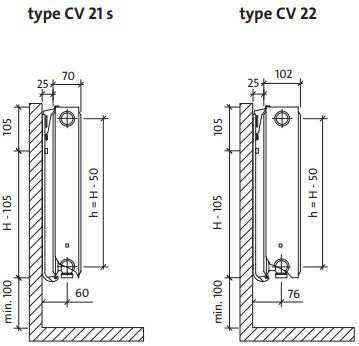

    side-view volume weight and mounting distances

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Documentation
    Technical Catalog Download
