Myson Vertical Radiator

The Myson Vertical panel radiators are a vertical variant intended for installation on narrow and tall fragments of walls. The radiators are equipped with convection fins (excep for the 10 and 20C types) and side covers (except for the 10 type). They have no top grille. Four bottom and two top G½" threaded female connectors allow for bottom (including central) or side connection. The radiator is not equipped with a built-in thermostatic valve insert.

  • Features
    • Built-in thermostatic valve.
    • Twin bottom connections with alternate side connections.
    • Adjustable wall bracket for easy mounting.
    • Two (2) Blind plugs and one (1) air vent.
    • Colour RAL9016 white, cold rolled heavy gauge steel.
background
How to Use Your Thermostatic Radiator Valve

The Compact & Ramo Panel Radiators come equipped with a built-in thermostatic valve. This video demonstrates how to use it so you can get started quickly with your own radiator.

Watch Now   56 Seconds
  • Technical Specs

    Vertical Models 36" High
    Specifications CV21S 900-400 CV22 900-400
    Width - Inches 16" 16"
    Connection Size - Inches ½" x ¾" ½" x ¾"
    Output at 180° AWT 2698 4937
    Output at 160° AWT 2078 3840
    Output at 140° AWT 1672 2810
    Output at 120° AWT 971 1777
    Output at 110° AWT 728 1432
    Output at 100° AWT 512 1037
    Vertical Models 24" High
    Specifications CV21S 600-400 CV22 600-400
    Width - Inches 16" 16"
    Connection Size - Inches ½" x ¾" ½" x ¾"
    Output at 180° AWT 1829 3047
    Output at 160° AWT 1408 2346
    Output at 140° AWT 1134 1706
    Output at 120° AWT 658 1097
    Output at 110° AWT 494 823
    Output at 100° AWT 348 579

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Radiator Extras

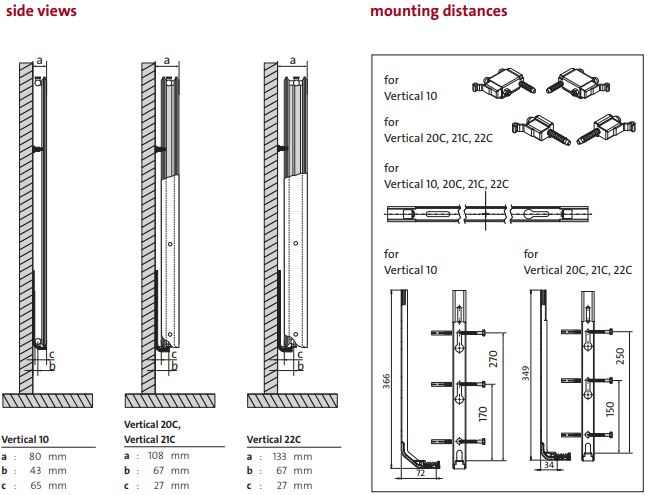

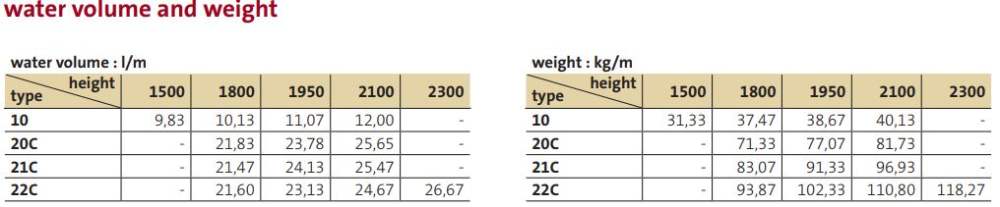

    side-view volume weight and mounting distances

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Documentation
    Technical Catalog Download
