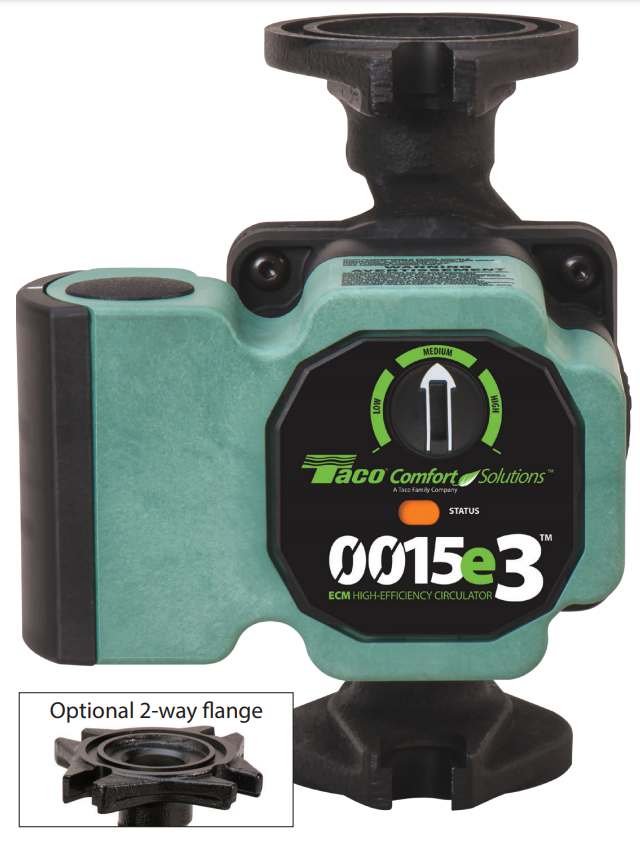

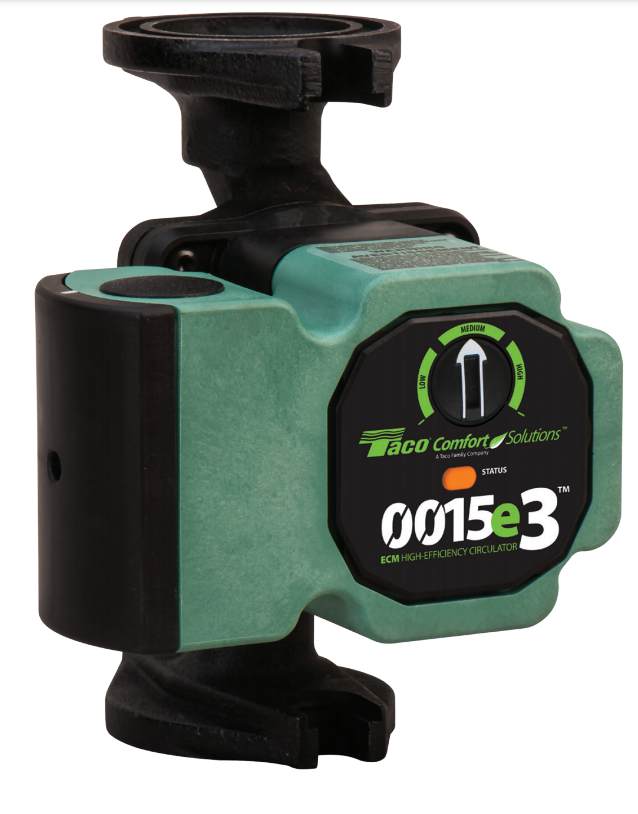

Taco 0015e3™ ECM High-Efficiency Circulator

Taco 0015e3™ ECM High-Efficiency Circulator Taco 0015e3™ is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00® famous

  • Features
    • Replaces ALL 3-speed hydronic circulators in its class
    • 3 easy settings. Install it, forget it.™
    • BIO Barrier® protects pump from system contaminants
    • SureStart™ automatic unblocking and air purging mode
    • High-efficiency ECM motor uses up to 85% less electricity
    • Integral Flow Check (IFC®) included
    • 3 easy settings: LOW (5' head), MEDIUM (10' head), HIGH (18' head)
    • 16 gpm max flow.
    • Dual electrical knockouts, 6” stranded wire leads included for easy wiring.
    • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation.
    • Testing: High pressure, seam weld, helium, final pre-charge check
    • Air Valve: Brass valve with o-ring seal
    • Warranty: 5 years
    • Orange LED: Indicates 0015e3 running normally.
    • SureStart™ LED: The White LED indicates that the innovative SureStart automatic unblocking and air purge is active. SureStart gives you the confidence that you’ll never get a locked rotor with the 0015e3. Install it, forget it.™
0015e3 flow chart

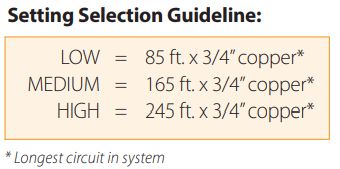

0015E3 Pump Curve The 0015e3 circulator provides three maximum ft of head pressure settings to match system requirements. Selection options are LOW (5 feet), MEDIUM (10 feet), or HIGH (18 feet). See chart above for the equivalent 00 model at each setting.

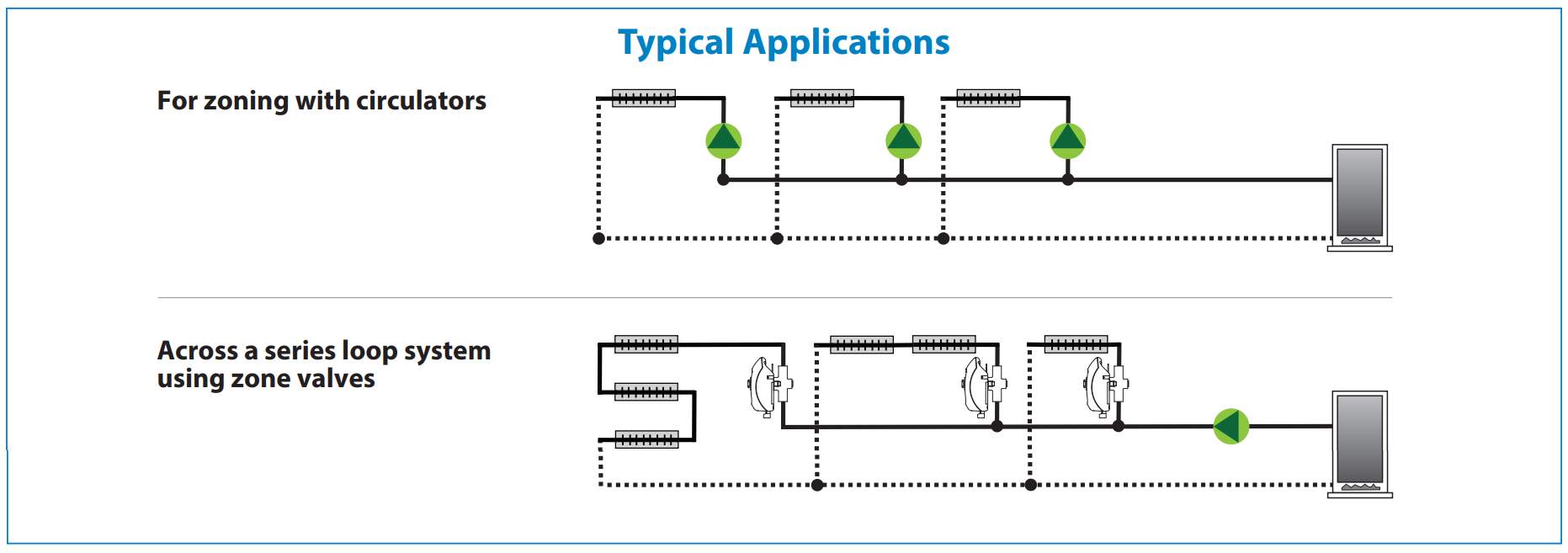

The 0015e3 performance curves are ideal for hydronic zoning to reduce velocity noise or banging of zone valves closing against high head pressure circulators. The factory default setting is MEDIUM which is ideal for most residential baseboard type systems zoned with circulators or zone valves. Adjust the dial to change the operating curve to meet system requirements.

  • Technical Specs

    Specifications 0015e3-F2/F4
    Max. Shut-off Head - feet 18
    Max. Flow - GPM 16
    Max. Operating Pressure - PSI(bar) 125(8.6)
    Max. Water Temp - °F(°C) 230(110)
    Min. Water Temp - °F(°C) 36(2)
    Single Phase Voltage - V, Hz 120, 60
    Max. Operating Power - W 44
    Max. AMP Rating - AMP 0.54

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Circulator Pump Extras
  • Documentation
    Catalog 0015e3
    Instruction Sheet-0015e3 0015e3

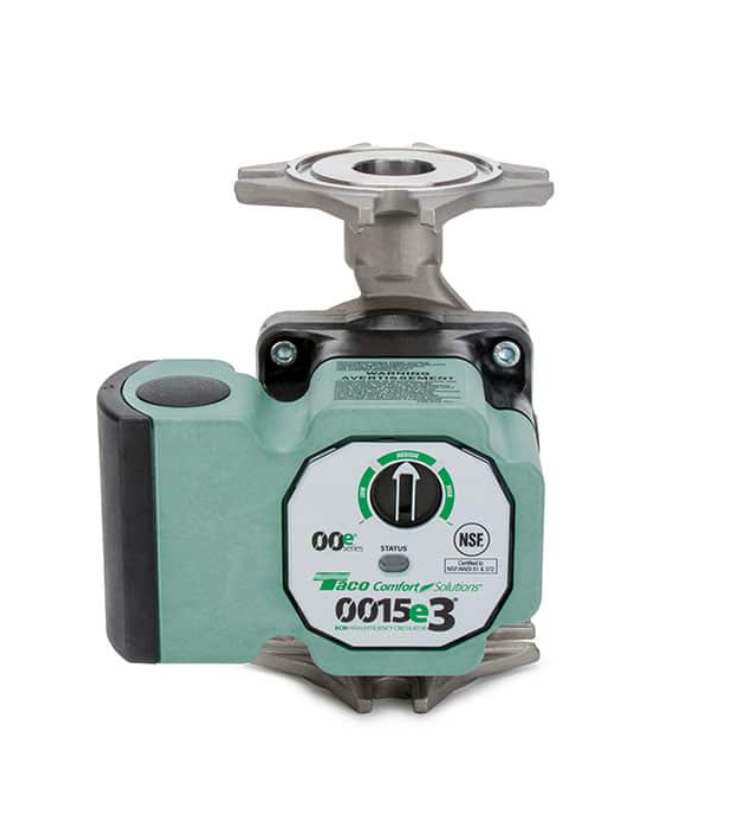

    Instruction Sheet-0015e3 Stainless Steel 0015e3
    Submittal Data Sheets 0015e3
    0015e3 STEP 0015e3
    0015e3-SS STEP 0015e3
