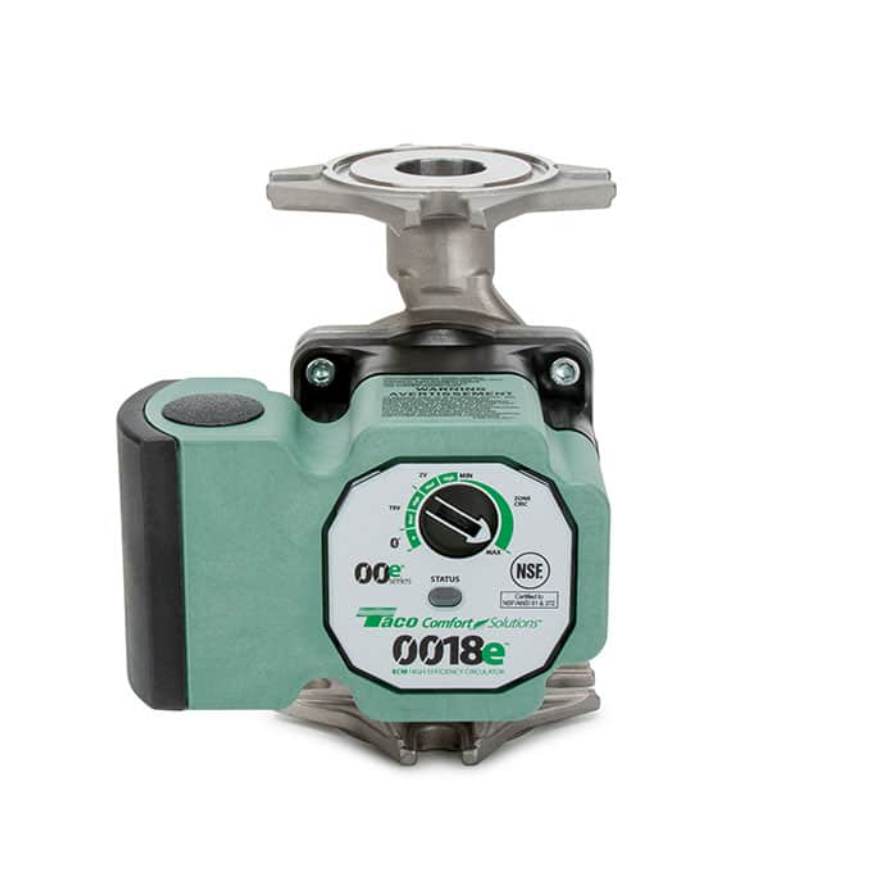

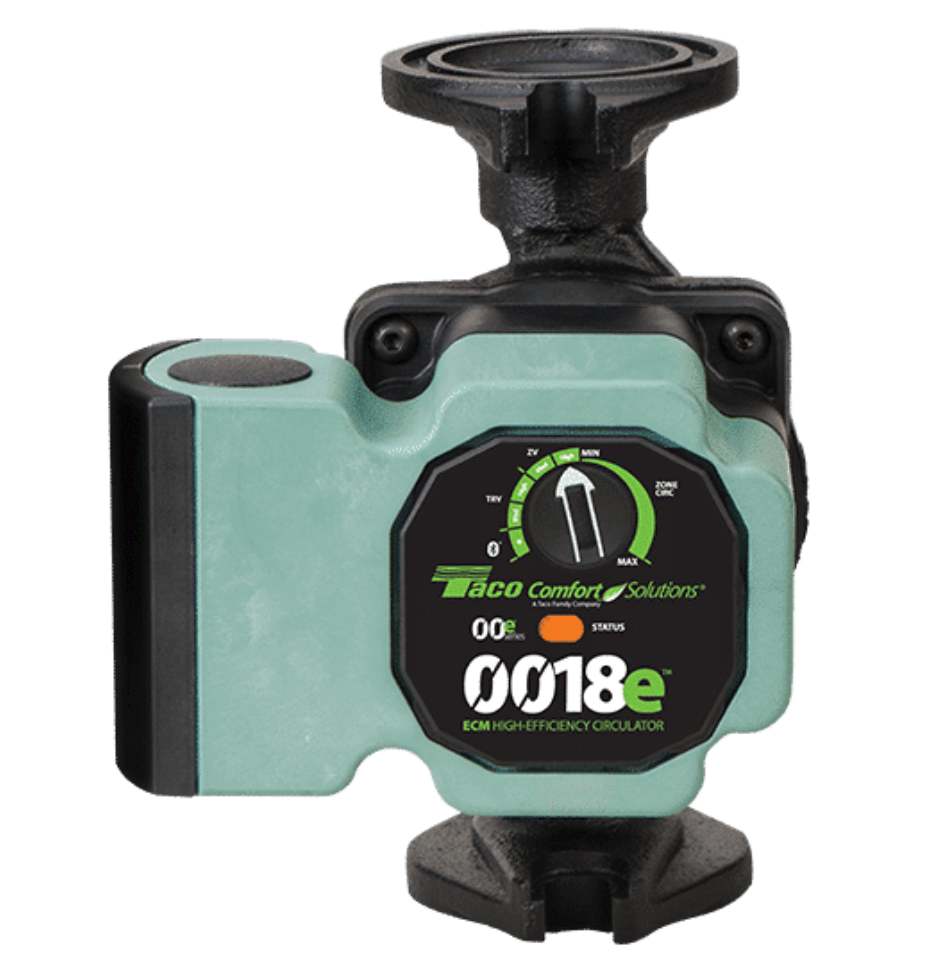

Taco 0018e ECM High-Efficiency Circulator
Taco 0018e ECM High-Efficiency Circulator The 00e® series - 0018e featuring Bluetooth® is a versatile, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor ideal for closed loop hydronic heating, open loop or domestic water applications. Download the Taco 0018e Mobile App to see and control real-time system performance. Run system operation & validation reports including performance diagnostics & history. Know the most efficient setting based on real-time feedback and alleviate the problems of over-pumping. You design systems with precision. The 0018e offers the performance & control to match.
-
Features
- 18’ Shut-off head, 16 gpm max flow
- ECM High-Efficiency motor uses up to 85% less electricity
- Easy-to-use dial
- 0018e mobile app for real-time performance display, system control and reporting
- 4 different operating modes:
- - Infinitely Variable Fixed Speed
- Constant Pressure — Variable Speed
- Proportional Pressure — Variable Speed
- activeADAPT® — Self-Adjusting, proportional pressure, variable speed
- Multi-color LED
- SureStart® automatic unblocking & air purge.
- BIO Barrier® protects pump from system contaminants (Cast Iron only
- Nut-grabber flanges for easier fit-up
- Dual electrical knock-outs and 6” stranded wire leads included for easy wiring
- Integral Flow Check (IFC®) included
- Whisper quiet operation
- Double insulated — no ground required
- Cast Iron models available with standard or universal flange
- Stainless Steel models available with universal flange or 1” union connection
- Customizable 1/2” & 3/4” union fitting sets available in sweat, NPT or press (Sold Separately)
-

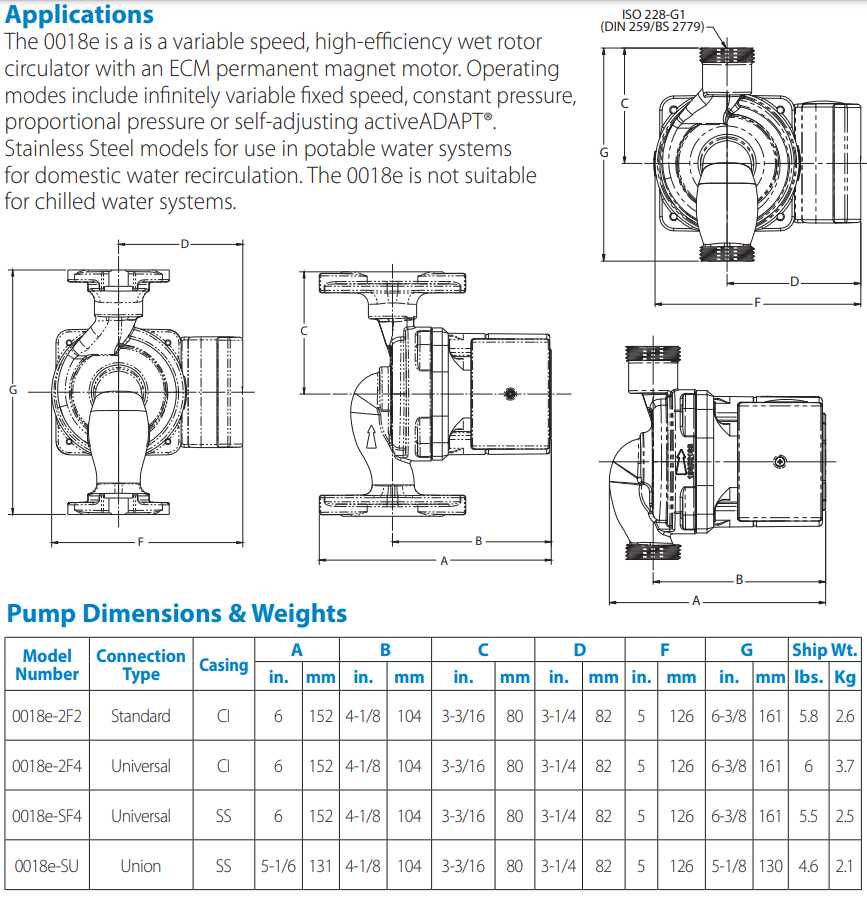

Technical Specs
Specifications 0018e Max. Shut-off Head - feet 18 Max. Flow - GPM 16 Max. Operating Pressure - PSI(bar) 125(8.6) Max. Water Temp - °F(°C) 230(110) Min. Water Temp - °F(°C) 36(2) Single Phase Voltage - V, Hz 120, 60 Max. Operating Power - W 44 Max. AMP Rating - AMP 0.54 Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
-
Circulator Pump Extras
-
Documentation
Catalog Taco 0018e Instruction Sheet-0018e Taco 0018e Instruction Sheet-0018e Stainless Steel Taco 0018e Submittal Data Sheets Taco 0018e 0018e STEP Taco 0018e 0018e-SS STEP Taco 0018e
