Taco 00 Series Cartridge Circulator
Taco 00 Series Cartridge Circulator The 00 series includes an Integral Flow Check, saving installation costs while improving system performance. The removable, spring-loaded IFC® replaces a separate in-line flow check and prevents gravity flow when the circulator is not operating. Available in Cast Iron or Stainless Steel construction.
-
Features
- Integral Flow Check (IFC®)
- Prevents gravity flow
- Eliminates separate in-line flow check
- Reduces installed cost, easy to service
- Improved performance vs. In-line flow checks
- Multi-color LED

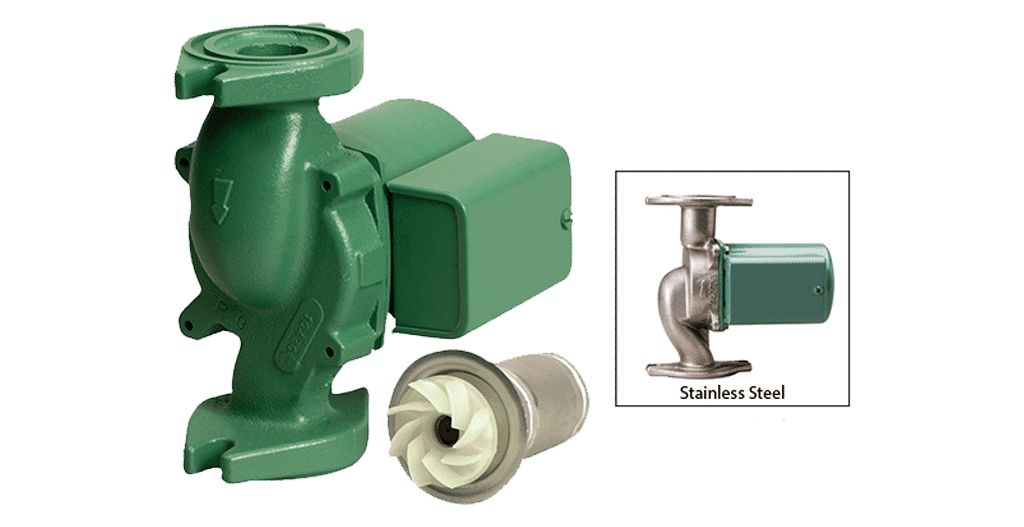

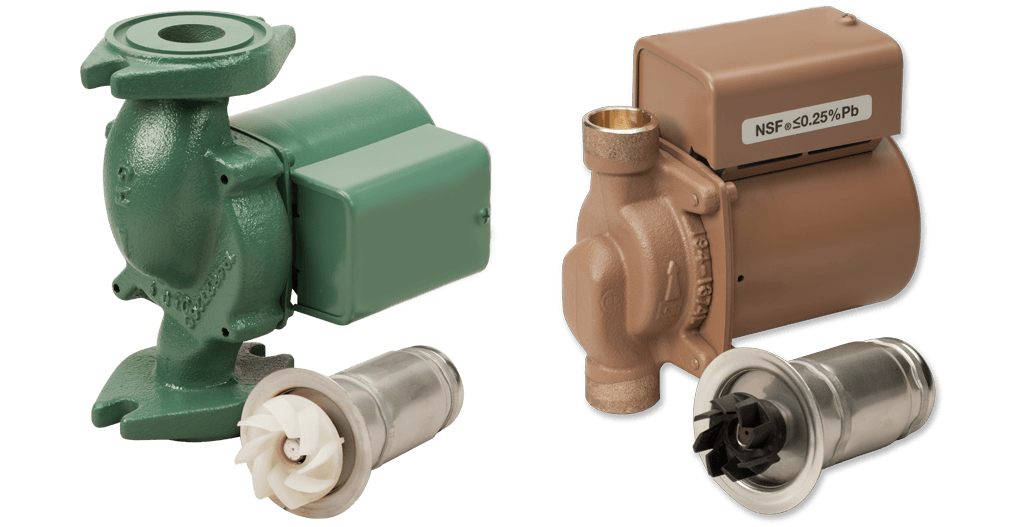

- Unique replaceable cartridge
- Field serviceable
- Unmatched reliability - Maintenance free
- Quiet, efficient operation
- Direct drive-Low power consumption
- Self lubricating, No mechanical seal
- Standard high capacity output
- Taco circulators are for indoor use only

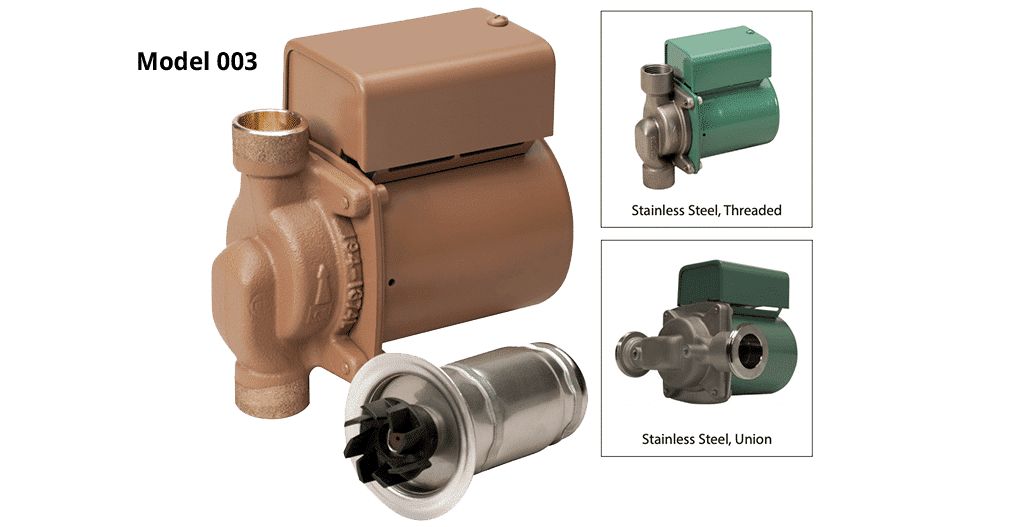

- Stainless Steel model suitable foropen loop potable water systems
-
Technical Specs

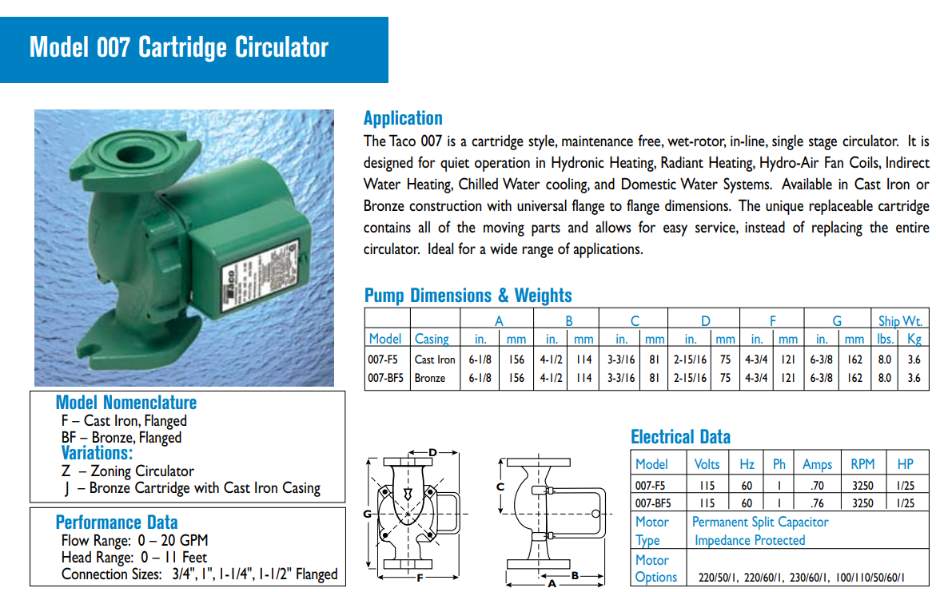

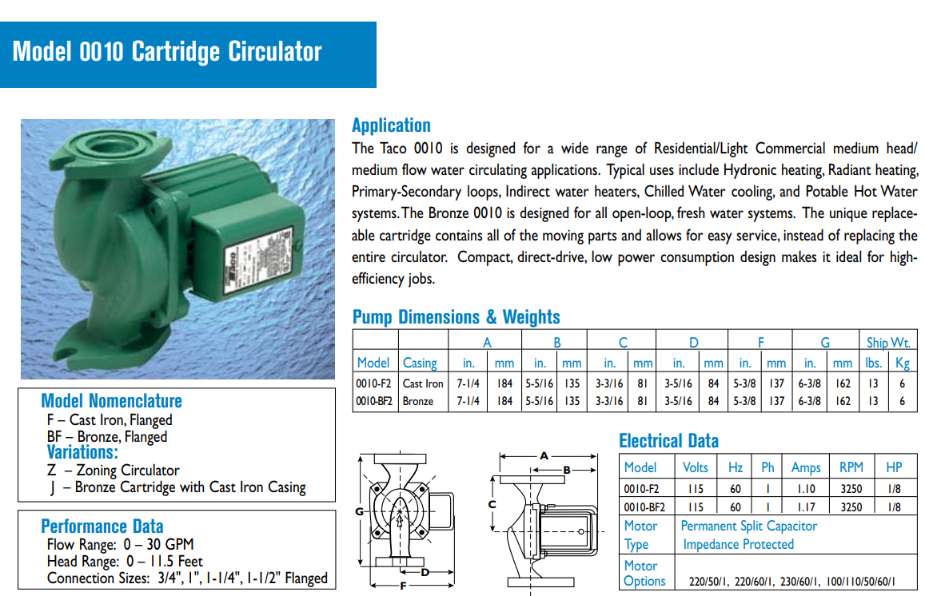

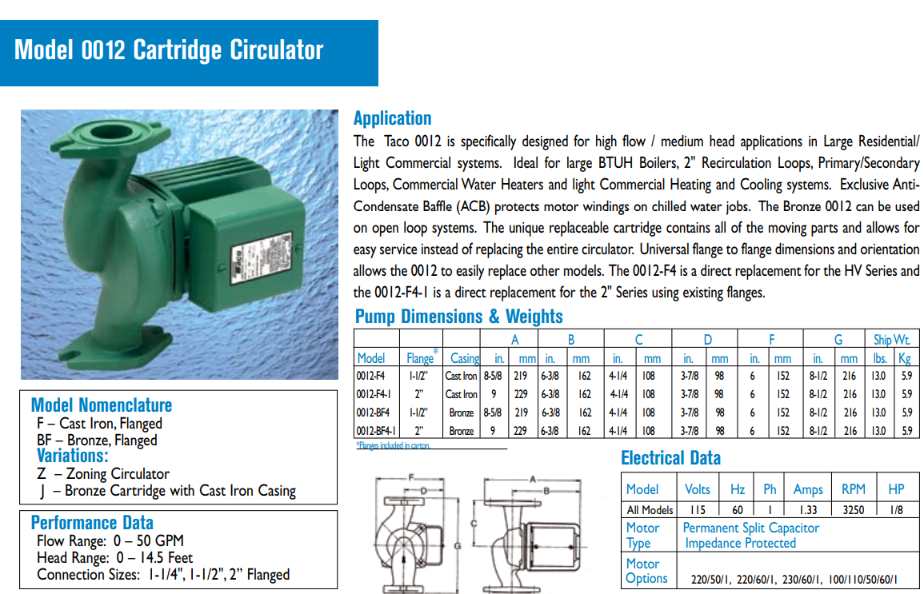

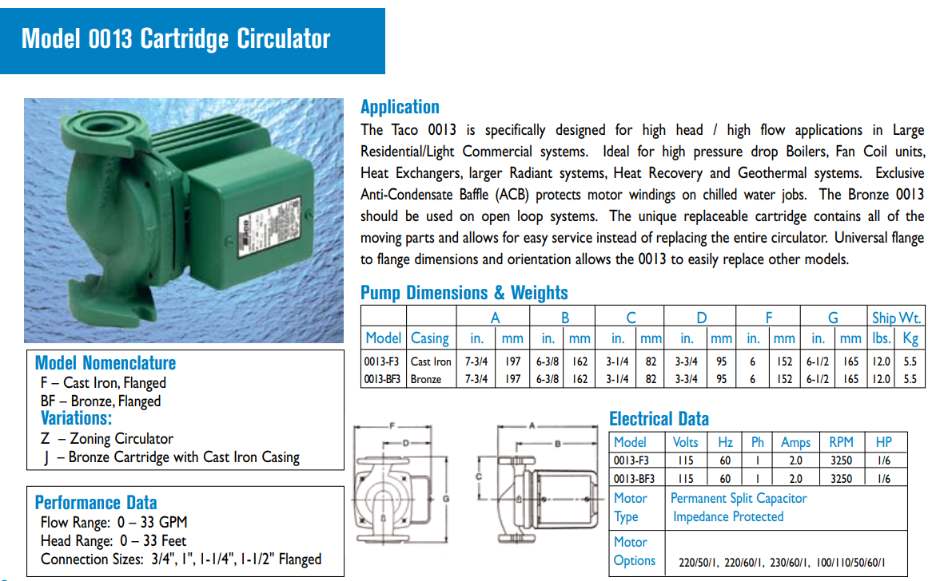

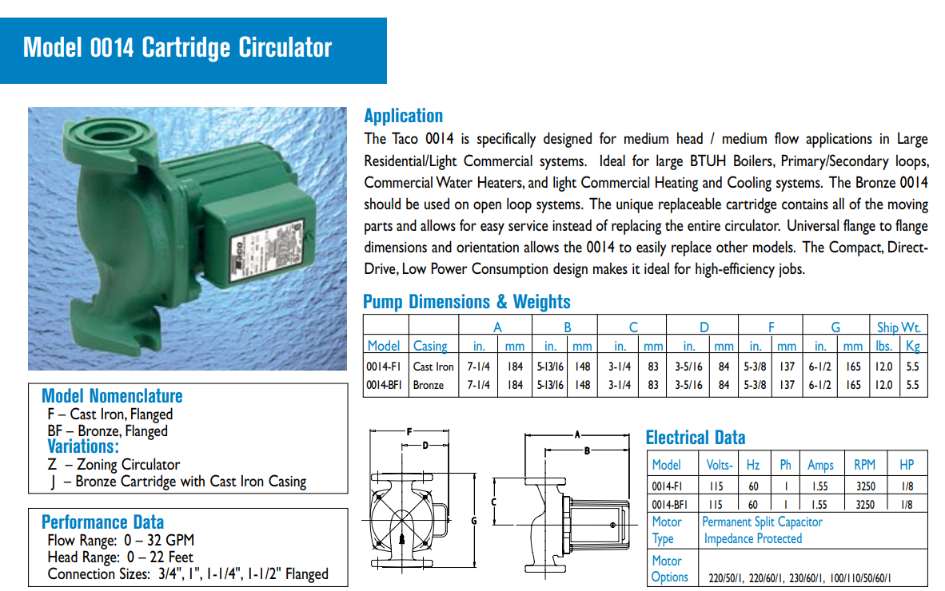

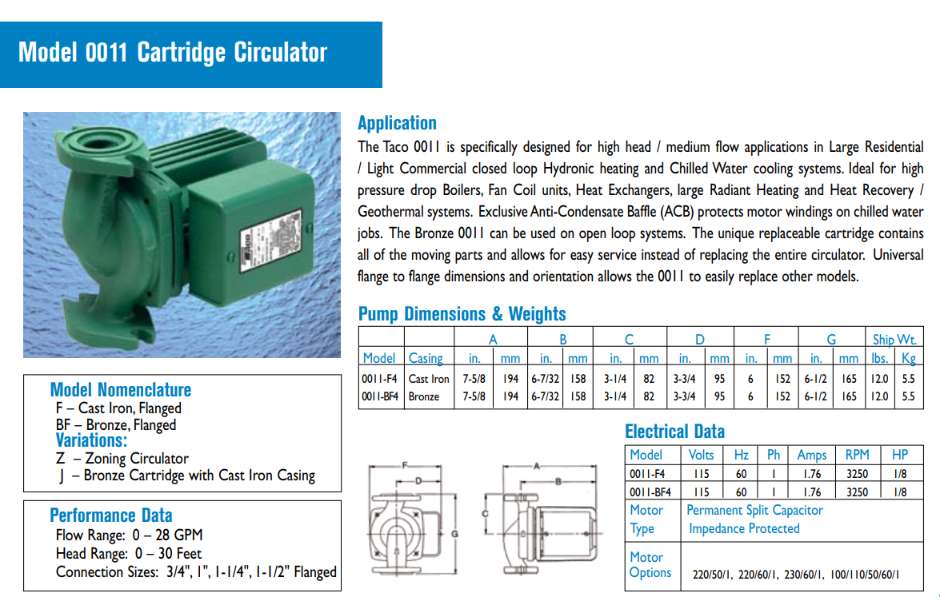

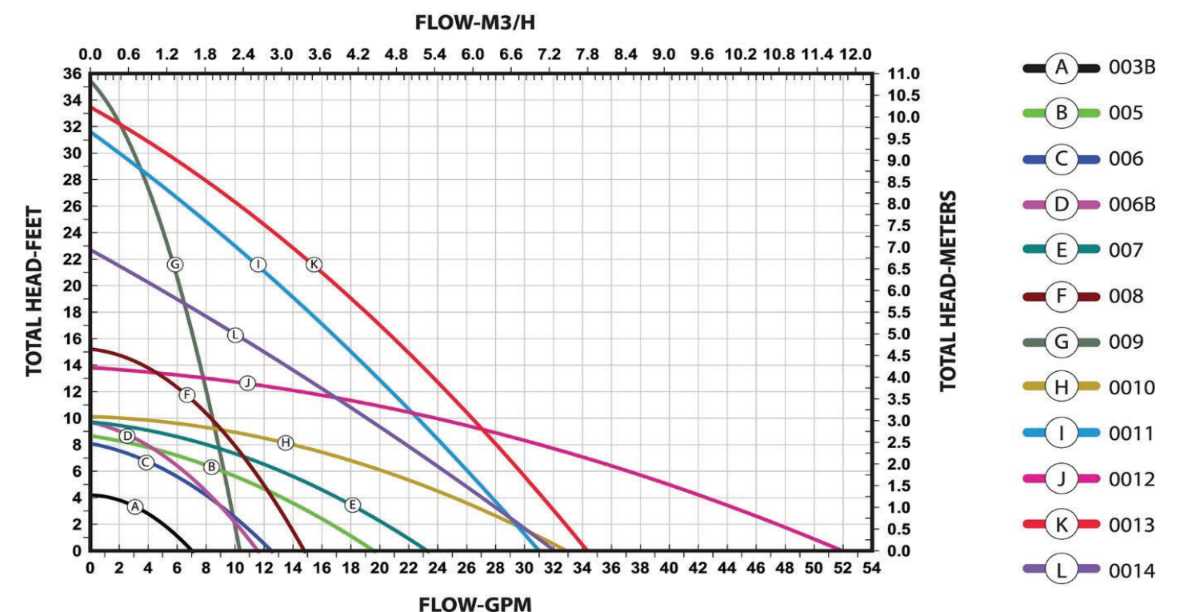

Specifications 007 Bronze 007 Cast Iron 0010 0011 0012 0013 0014 Max. Operating Pressure - PSI 125 125 125 125 125 125 Max. Fluid Temp - °F(°C) 230(110) 240(115) 230(110) 230(110) 230(110) 230(110) 230(110) Min. Fluid Temp - °F(°C) 40(4) 40(4) 40(4) 40(4) 40(4) 40(4) 40(4) Flow Range - GPM 0-20 0-20 0-30 0-28 0-50 0-33 0-32 Head Range - Feet 0-11 0-11 0-11.5 0-30 0-14.5 0-33 0-22 Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
-
Circulator Pump Extras
-
Documentation
Catalog Taco 00 Series Instruction Sheet Taco 00 Series Submittal Data Sheets Taco 00 Series Replacement Parts Taco 00 Series "00" Cross Reference Taco 00 Series DHW Cross Reference Taco 00 Series
