Taco 1915e ECM High-Efficiency Circulator

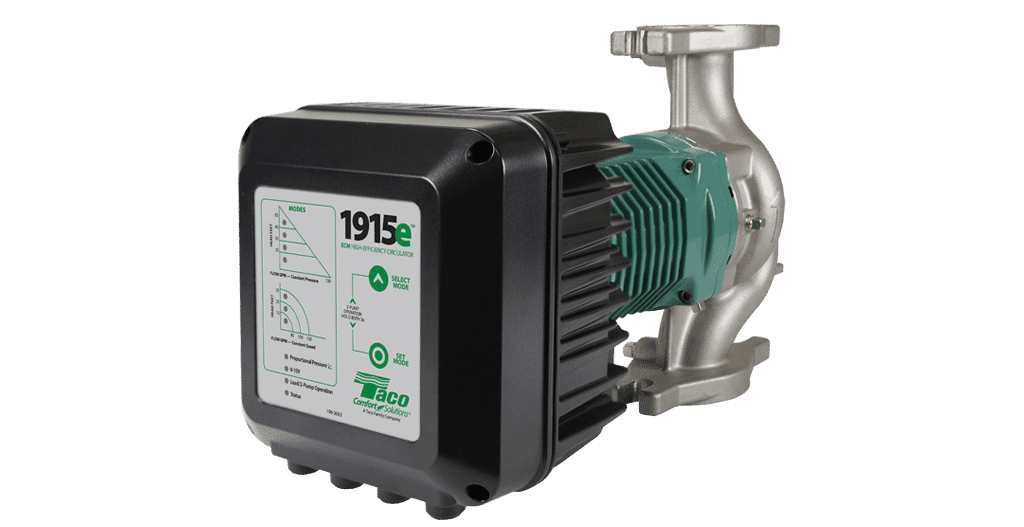

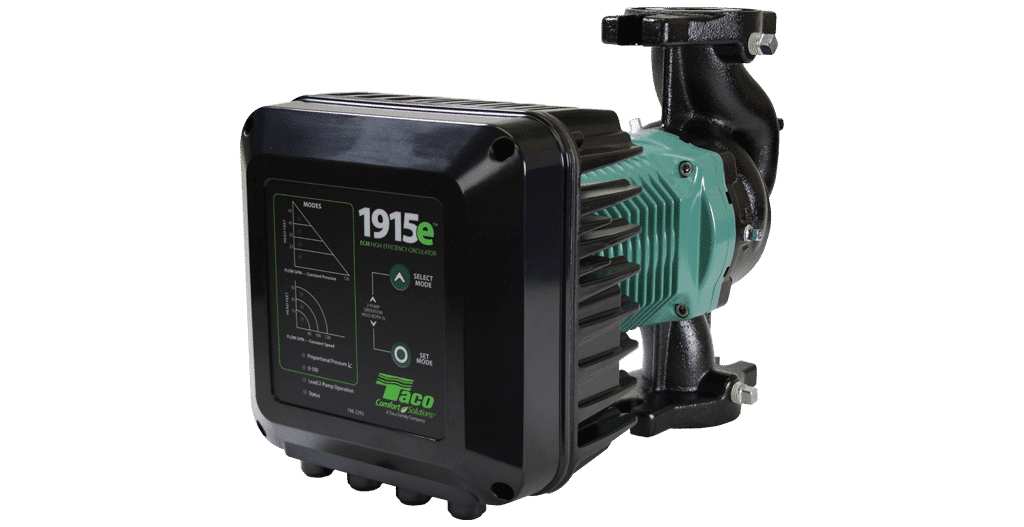

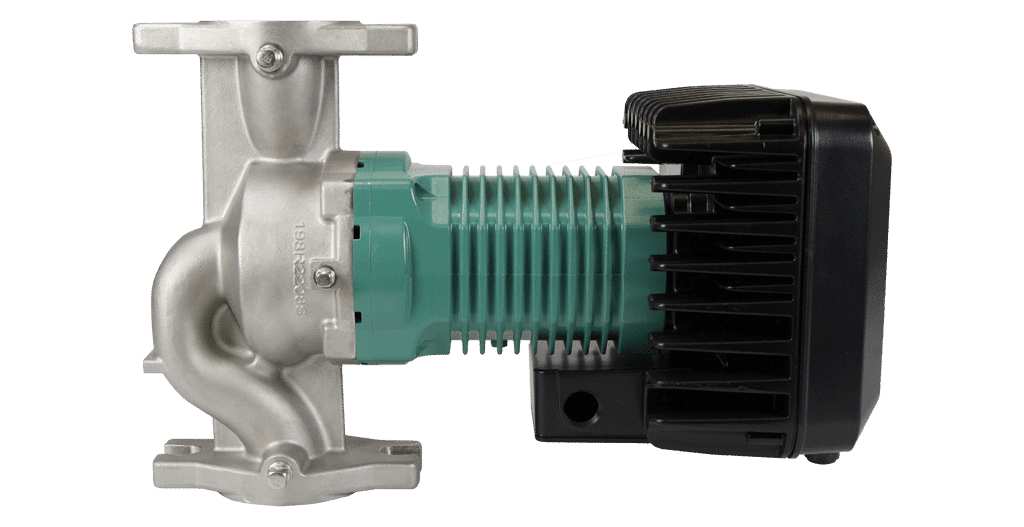

The ECM 1915e is a self-sensing, close coupled, mechanically sealed in-line pump that exceeds industry and efficiency standards with an advanced hydraulic design. It features a high-efficiency volute, permanent magnet motor with ECM technology and integrated frequency drive. Simple yet versatile control options include constant pressure, constant speed, proportional pressure, 0-10Vdc and parallel pump alternation. These standard features combined with the intuitive user interface allow for quick start-ups achieving optimum system efficiency and maximum comfort. The 1915e is available in Ductile Iron for closed loop hydronic heating and cooling systems or Stainless Steel, NSF Commercial Hot Certified for DHW applications.
-
Features

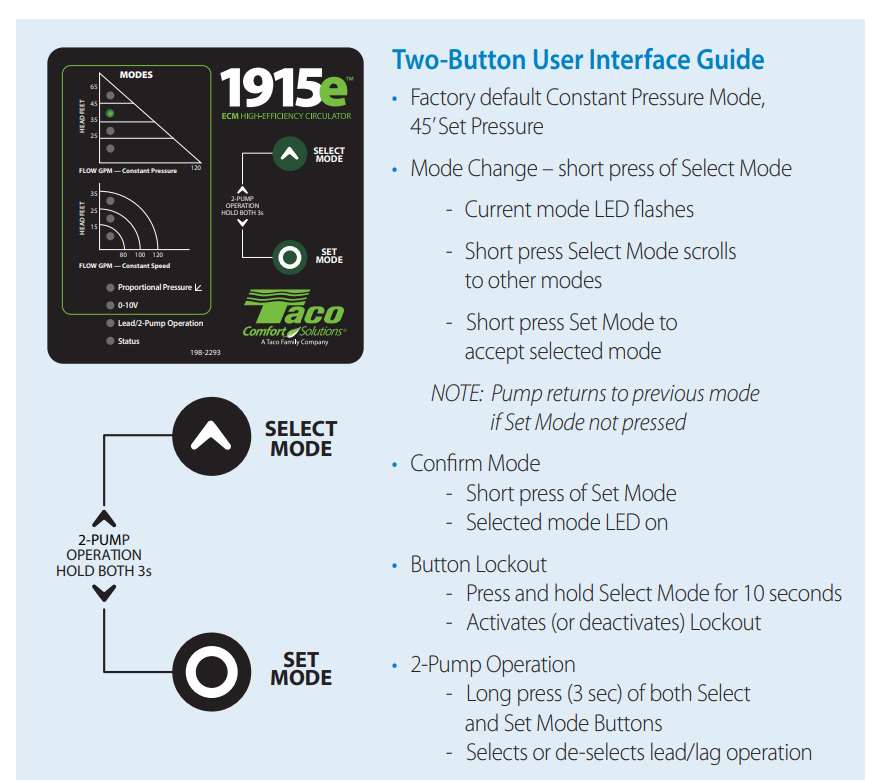

- Easy-to-program pump interface
- High-efficiency ECM motor uses up to 85% less electricity
- Constant speed, constant pressure, or proportional pressure modes
- BMS 0-10V
- 2-pump operation
- 65’ Shut-off head, 120 USGPM max flow
- ECM brushless DC, high-efficiency, soft start, high starting torque motor
- Easy to program pump interface
- Self-sensing

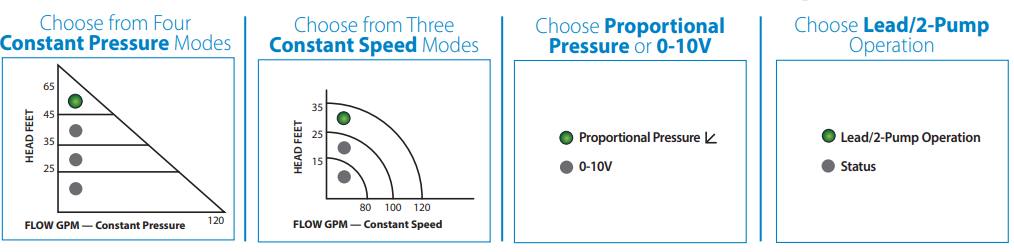

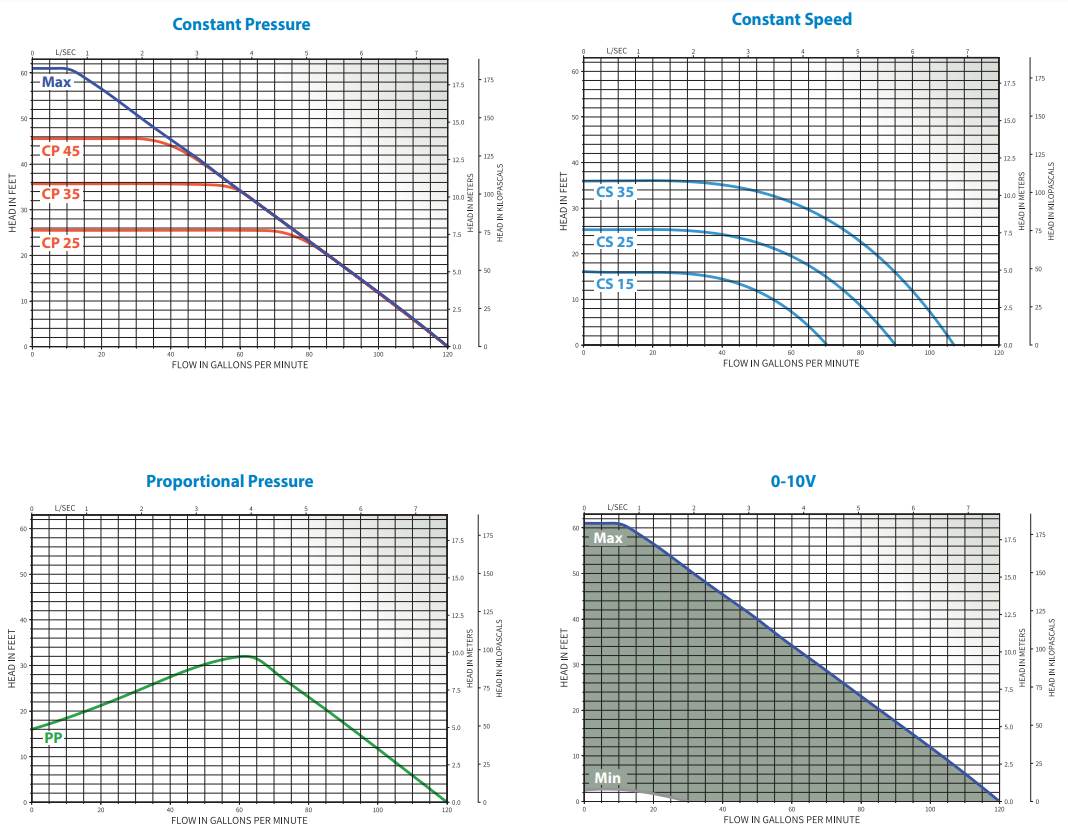

- Multiple Operating Modes
- 4 Constant Pressure
- 3 Constant Speed
- 1 Proportional Pressure
- LED Status Light
- Error Diagnostics
- Locked Rotor
- Over Current
- Over & Under Voltage
- Over Temperature
- Communications Failure
- External Inputs/Outputs
- 0-10Vdc external speed control
- Remote enable
- Overload relay output
- Parallel pump control
- High quality mechanical seal
- Carbon/Silicon-Carbide/EPDM for Ductile Iron Model
- Carbon/Silicon-Carbon/Viton for SS Model
-
Technical Specs

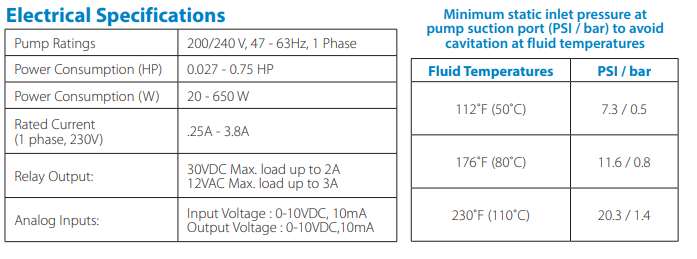

Specifications 1915e Max. Shut-off Head - feet 65 Max. Flow - USGPM 120 Max. Operating Pressure - PSI(bar) 150(10.3) Water Temperature Range - F(C) 36-230(2-110) Ambient Temperature Range - F(C) 32-104(0-40) Ambient Humidity - RH Less than 95% Single Phase Pump Ratings - V, Hz 200/240,46-63 Power Consumption - W 25-650 Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
-
